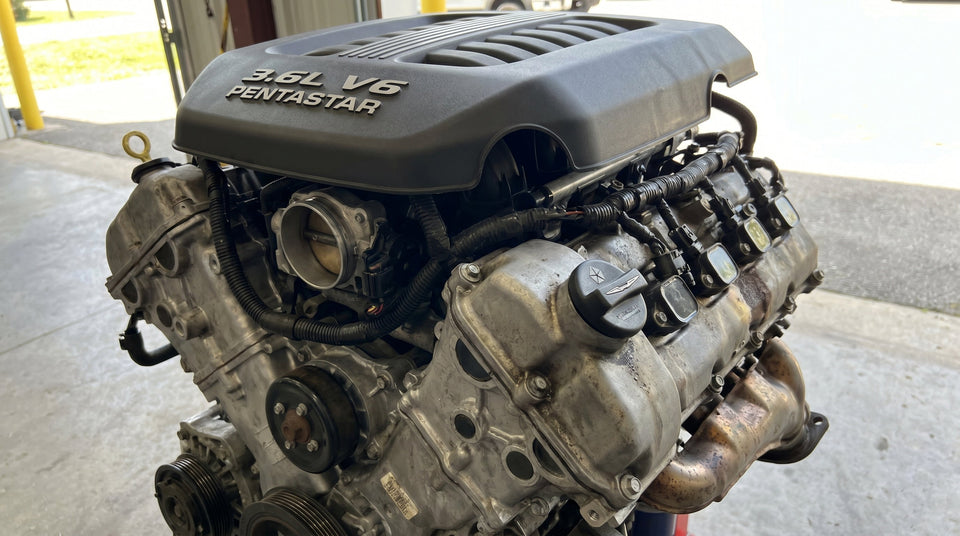

Mastering the 3.6L Pentastar Tick Misfire (P0300 or P030x): The Professional Repair Guide

If you own a Chrysler, Dodge, or Jeep equipped with the 3.6L Pentastar V6, you might have encountered the dreaded "ticking" sound or a persistent misfire code (like P0300 or P030x). These are classic symptoms of a valvetrain failure that, if left unaddressed, can lead to a complete engine rebuild.

In this guide, based on expert mechanical teardowns, we’ll look at why these engines fail, the right way to fix them, and the ultimate all-in-one solution to get your vehicle back on the road.

The Symptoms: Ticking and Misfires

The most common sign of trouble is a rhythmic metallic ticking noise that increases with engine speed. Often, this is accompanied by a check engine light for a cylinder misfire.

The Root Cause: Within the 3.6L Pentastar’s overhead cam design, the roller rocker arms are the weak link. Each rocker has tiny needle bearings inside the roller. Over time, these bearings fail, causing the roller to seize or develop excessive play. Once the roller stops rolling, it begins to "hammer" and grind against the camshaft lobe, literally eating away the metal and causing the misfire.

Why "Shortcuts" Are Dangerous

Many DIYers and some shops try to replace a single rocker arm by prying the camshaft up without properly releasing the timing chain tension. This is a massive risk. 1. Stripped Threads: The cylinder head is aluminum. Forcing the camshaft up under tension can easily strip the threads for the cam bearing caps. 2. Incomplete Fix: Replacing only the "one bad rocker" is a gamble. If one has failed, the others are likely right behind it.

Key Technical Steps for a Successful Repair

To do the job "by the book," professional mechanics emphasize three critical steps:

• The Rest Position: Before removing the cam bearing caps, the camshaft must be rotated approximately 30 degrees to its "Rest Position." This ensures no lobes are pushing down on the valves, preventing uneven tension that could snap the cam or ruin the head threads.

• Alignment Holes: Timing is everything. The four alignment holes on the camshafts must be perpendicular to the cylinder head deck before you lock the phasers.

• Pre-Lubrication: New lifters and rockers should be soaked in engine oil (5W-20) for at least 15 minutes to purge air and ensure they aren't "dry" during the first critical startup.

The Ultimate Solution: Trexcar 3.6L Pentastar Master Kit

When you tear down your engine this deep, you don't want to do it twice. The smartest move is to replace all potential failure points at once.

Our Trexcar 3.6L Pentastar Ultimate Master Kit is designed to be the "everything you need" solution. It includes:

• Full Set of 24 Rocker Arms & Hydraulic Lifters: Upgraded designs to prevent future ticking.

• Precision VVT Gears (Phasers) & Oil Control Valves: Restores accurate timing and oil flow.

• Complete Timing Chain & Guide Set: Since you are already working with the cams, replacing the timing components now saves thousands in future labor costs.

By choosing the Trexcar Master Kit, you aren't just fixing a noise; you are restoring your engine to its factory-fresh peak performance.

Tech Q&A: Is an Alignment Tool Set Absolutely Necessary?

The answer is a definitive YES.

If you are removing the camshaft, you cannot skip the specialized alignment/locking tool set (typically including the 10202-1/2 wedges and tensioner pins). Here is why:

1. Phaser Locking: To loosen or tighten the Oil Control Valve (OCV) bolt (which requires a massive 118 ft-lbs of torque), you must lock the intake and exhaust phasers together. Without the wedge tool, you would be putting all that force onto the timing chain, which can cause it to stretch or snap.

2. Maintaining Timing without Removing the Front Cover: These tools allow you to lock the timing chain and phasers in place so you can slide the camshaft out from behind them. Without these tools, the hydraulic tensioner will fully extend the moment the cam is moved, and the chain will fall into the engine. If that happens, you are forced to remove the entire front timing cover, water pump, and crank pulley—tripling the labor time.

3. Safety for the Cylinder Head: Using the tools ensures the chain stays indexed. Without them, you risk the engine jumping time, which on an interference engine like the Pentastar, means the pistons will hit the valves, leading to a total engine failure.

In short: Get the TREXCAR one-stop kit to save thousands of dollars.
